5 Simple Steps to Mastering Stunning Heat Foil Projects with Silhouette

Heat foil projects are a show-stopping way to add a touch of elegance and shimmer to your designs, whether you’re crafting cards, gifts, or custom decor. With the right tools and techniques, creating stunning heat foil projects can be simple and rewarding. In this guide, we’ll walk you through five easy steps to achieve excellent results using your Silhouette machine. Whether you’re a beginner or looking to enhance your foiling skills, these tips will help you create dazzling projects that shine every time. Let’s get started!

Affiliate links may be present in the following blog post and as an Amazon Associate, I earn from qualifying purchases.

5 Steps for Gorgeous Heat Foil Projects

1. Create Your Design – design or select your project in Silhouette Studio
2. Set Up the Foil Action – adjust your settings for the perfect foil application
3. Prepare the Mat – place the foil on your material in the correct position & secure it
4. Send to Foil – let your Silhouette machine work it’s magic
5. Reveal Your Design – carefully remove the foil to unveil your stunning creation

Essential Supplies for Heat Foil Crafting Success

• Silhouette Cameo 5 – Crafter Cuts or Silhouette America
  or Silhouette Curio 2 – Crafter Cuts or Silhouette America
• Silhouette Autoblade – Crafter Cuts or Silhouette America
• Silhouette Leatherette – Crafter Cuts or Silhouette America
• Silhouette Heat Pen Set – Crafter Cuts, Silhouette America, or Amazon
• Silhouette Heat Foil – Crafter Cuts, Silhouette America, or Amazon
• Washi Tape
• Fabri-Tac Permanent Fabric Adhesive

For older model machines without the powered tool housing

• We R Makers Foil Quill

Additional Heat Foils that I’ve tested

• Spellbinders Hot Foil
• We R Makers Hot Foil

New video on the Silhouette Secrets+ YouTube channel – Additional Tips!

We’ve just released a brand-new video on the Silhouette Secrets+ YouTube channel, Silhouette Heat Foil Pen Dos & Don’ts: Tips for Perfect Foiling Every Time! In this video, we break down the essential tips and common mistakes to avoid when using the Silhouette Heat Foil Pen. You can see the machine in action and what goes right and what did not. Use these tips along with the step-by-step details below for perfecting your foiling techniques.

Don’t forget to like, subscribe, and hit the notification bell to stay up-to-date with all our Silhouette tips and tricks on YouTube.

Your Step-by-Step Guide to Flawless Heat Foil Projects

1 – Create the Heat Foil Design

Choose a design to foil, or create your own custom design in Silhouette Studio.

Decide if you want the outline of the design to be foiled or if you prefer to fill the entire design with foil.

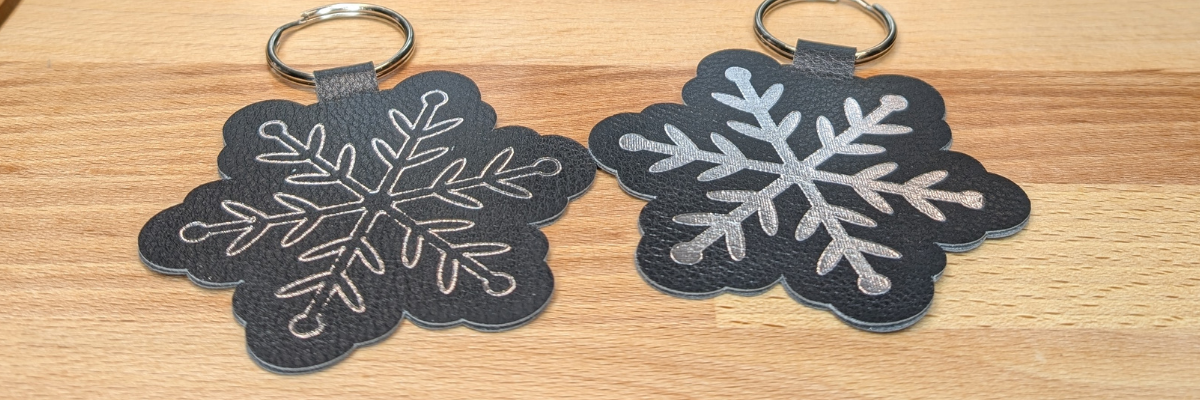

Silhouette Studio is a cutting program, so any design that is on the screen is automatically an outline. Filling it with a color only changes how it looks on the screen and is used for printing through a printer. The design on the left in the photo above is the snowflake design sent without adding any additional steps to it. The design on the right is filled with a cross-hatched fill using the Specialty Tools Panel – Heat Pen Tab.

The best fill and spacing is really dependent on the design and materials that are being used. The only way to really know what will look the best is to test it and see for yourself.

If the fill on your design is too tight, it can cause the foil to be removed from certain areas due to multiple passes over the same spot, leaving blank spaces. On the other hand, if the fill is too loose, it can also result in gaps. The ideal fill depends on the desired final look, and the best way to determine what works is to test it out.

I set my foiling and sketch projects up with blue as the foil/sketch lines and red for the cut line using the Line Color in the QAT or the Line Style Panel. This will be helpful when setting up the foiling settings in the next step.

For those who are using older model Silhouette machines and the Foil Quill, the Sketch/Line Effects Panel can be used to add a fill to the design following the same tips listed above.

2 – Set Up the Heat Foil Action

When using the Silhouette Heat Pen, there is an Action for the Heat Pen that may need to be set up. Click on the Send tab and then select your material such as Cardstock, Plain Cardstock, or Leatherette. If there is no Heat Foil Action that shows up for the material, then a custom setting will need to be created. This is not hard to do and we will go through it below.

On the Send tab, in Silhouette Studio, once the Heat Pen has been recognized in the Silhouette Cameo 5, Portrait 4, or Curio 2, you should see a message asking if you want to turn it on. The Silhouette Heat Pen takes approximately 3 minutes to heat up before it can be used properly.

I use the Cut by Line option on the Send tab, so the different actions can easily be turned on and off, so the design can first be foiled, then the foil removed, and then cut if the project requires.

Select the material setting for the red color cut lines. Test cuts will be the only way you know what the perfect setting is for your material, so don’t skip that step before you start and waste materials.

When using the Cut by Line or Cut by Fill Color options, it’s important to ensure the correct color is selected when adjusting settings in the bottom section of the Send tab. For example, if red is selected at the bottom but isn’t the box check for cutting, any changes made will apply to the red cut lines instead of the intended selection. Always double-check that the selected color matches the cut settings you’re adjusting.
More details and a visual example of that in this Silhouette Cutting Issues – Cut by Line or Fill Color video.

The next thing to note is that if there is no Heat Pen action programmed for a material, you will see a Setting not found message. This is not a problem, we will create a custom setting by clicking on the MORE button and then creating our own setting for our material.

Click the + sign at the bottom of the materials list, name your material, and then select the machine model.

Now, the next steps are important so the setting is not created with actions that are not needed.

With the material you added selected, select Carriage 2, then click on the + sign on the right side. Choose Add Foil Action. Adjust the settings for force, speed, etc. The only way to know what settings work will be to test and use those settings.

Now, the important part. Click on the Kraft Action and choose REMOVE ACTION at the bottom of the Send tab.

If the Kraft Action or any other action that is set for a material is not removed, it will show up in the settings when the material is selected and can be confusing and cause future issues for projects.

Next click the drop down shown above and select the material that is closest to what you are using for this setting. I don’t actually know that this does anything other than serve as a reminder to you, but it was added randomly to the software many versions back.

Click SAVE if it’s available and then click the giant X at the top of the Send tab to close this window.

Then select the new material created in the drop down next to the line color you want it applied to. User Created Settings will appear at the bottom of the Materials selection drop box.

Verify that the settings are what you created and look right.

Congratulations! You have created your own custom setting. I would also recommend writing down these settings in a safe place. Sometimes they can disappear out of the software. They can also be exported by clicking on the MORE button and right click on the material and export, however, that file cannot always be successfully imported back in. These are just some things we’ve seen over the years with different software versions.

For older model machines and creating a custom setting, please see this tutorial HERE.

3 – Prepare the Mat

If the material will be cut after the foiling, place the materials at the bottom of the Silhouette cutting mat so it easier to remove the foil before sending the material to be cut.

Apply the foil in the same location on the material and mat that is set up in the Silhouette Studio software. Make sure the foil covers the entire area of the design to be foiled and that the washi tape is not in the areas being foiled or it can interfere with a complete foiled image.

Add the washi tape to one corner and then move to the diagonal corner and apply the washi tape, pulling it taunt. Then add washi tape to the final 2 corners and pull taunt as applied. Adjust as needed so the foil does not have any slack or creases. If it catches or has creases, it can affect the final results.

Once the foil is secured flat on the materials, load the cutting mat in the Silhouette machine.

When the design is placed in the top left corner as we are used to, then it can be difficult to remove the foil without unloading the mat. I got too excited and did that on my first design.

It took a bit more work, but I was able to remove the washi tape and foil without unloading the cutting mat. If this every happens to you, make sure to check for any washi tape that might get stuck under the roller bar or in the machine. I found a small piece that could have been a BIG problem on future projects if I had not seen it.

4 – Send to Foil

Check the box next to the Heat Foil setting and verify it’s set for Tool 2. Make sure the red is unchecked so you have time to remove the foil before it cuts the design. Then click Send in the bottom right and approve any windows that might pop up.

Remove the foil before cutting or the foil can dull the blade faster or get caught up in the machine during the cut and the project can be ruined.

5 – Reveal Your Design

Make sure to carefully remove the washi tape & don’t let the foil touch the adhesive cutting mat. It will stick immediately and then be stuck onto your cutting mat. If you reveal it slowly and it did not foil well, you can try securing the foil back down and run it again to see if it will foil better. You may need to adjust the settings and this is why testing is so important.

Do not unload the cutting mat between the foil and cut action or the design may not cut in the correct location. This is why the location of the design at the bottom is easily to work with.

Next, on the Send tab in Silhouette Studio, uncheck the blue line color and check the red color, then send the design to be cut.

When it’s finished, check the cut before unloading the cutting mat. If it did not cut well, you can send it again. After it’s cut, unload the cutting mat, flip the mat over, and peel the mat away from the material at a sharp angle to help it release.

Keep in mind that anytime you sketch or foil with a fill, the tool is going over the design multiple times depending on your fill options. This can mean that the material will be stuck down to the cutting mat in that area and may need a bit more care to remove without damage.

Finish out the project with any assembly needed and then enjoy!

Make sure to check out the video on the Silhouette Secrets+ YouTube channel for a visual of creating these projects and additional Dos and Don’ts too! Find it HERE.

Additional Resources for Mastering Heat Foiling Techniques

• Silhouette Heat Pen Setup & Foiling tutorial
• Specialty Tools – Heat Pen Panel
• Quick Foil Card Design video
• Beginner Foil Quill tutorial
• Line Effects/Sketch Panel
• Print and Cut Foil Embellishments
